    ZA2000

    2-5MW modular hydrogen-electric powertrain for 40-80 seat regional turboprops

    Download Brochure Contact Us Download Whitepaper

    ZA2000

    2-5MW modular hydrogen-electric powertrain for 40-80 seat regional turboprops

    Download Brochure Contact Us Download Whitepaper

    Scaling Electrified Flight for Large Regional Turboprops

    A hydrogen-electric powertrain based on unique, proprietary advances in novel fuel cell and electric propulsion systems

    parallax-image blue sky

    Utilizing ZA2000 powertrains in 40-80 seat aircraft can enable:

    icon of ZA

    Zero-emission flight and fuel

    Tackling 95% of climate change impact: clean hydrogen in fuel cells generating electricity to power electric motors

    icon of ZA

    Lower and more stable fuel costs

    Green hydrogen cost set to be lower than jet kerosene and SAF; fuel cell systems offer more energy efficient use of fuel

    icon of ZA

    Significantly lower maintenance cost

    ZeroAvia’s hydrogen-electric powertrain promises significant extension of flight hours between major servicing events

    icon of ZA

    Reduced noise and air pollution

    Removing the noise and exhaust of combustion engines to reduce disruption and air quality impacts on communities close to airports

    Green Regional Flight

    The ZA2000 is a 2-5MW modular hydrogen-electric powertrain for up to 80 seat regional turboprops

    Providing efficient, clean and quiet propulsion for the future of regional air mobility

    Fueled by liquid hydrogen tanks and capable of carrying passengers up to 1000 NM.

    paralax

    How does our hydrogen-electric powertrain work?

    State-of-the-art fuel cell and electric motor technology combine to create an unparalleled aircraft engine with improved operating economics and zero-emissions

    Liquid hydrogen stored onboard in lightweight tanks to feed fuel cell systems and generate electricity

    Electricity used to power electric motors, which turn propulsors to generate thrust

    Download Brochure

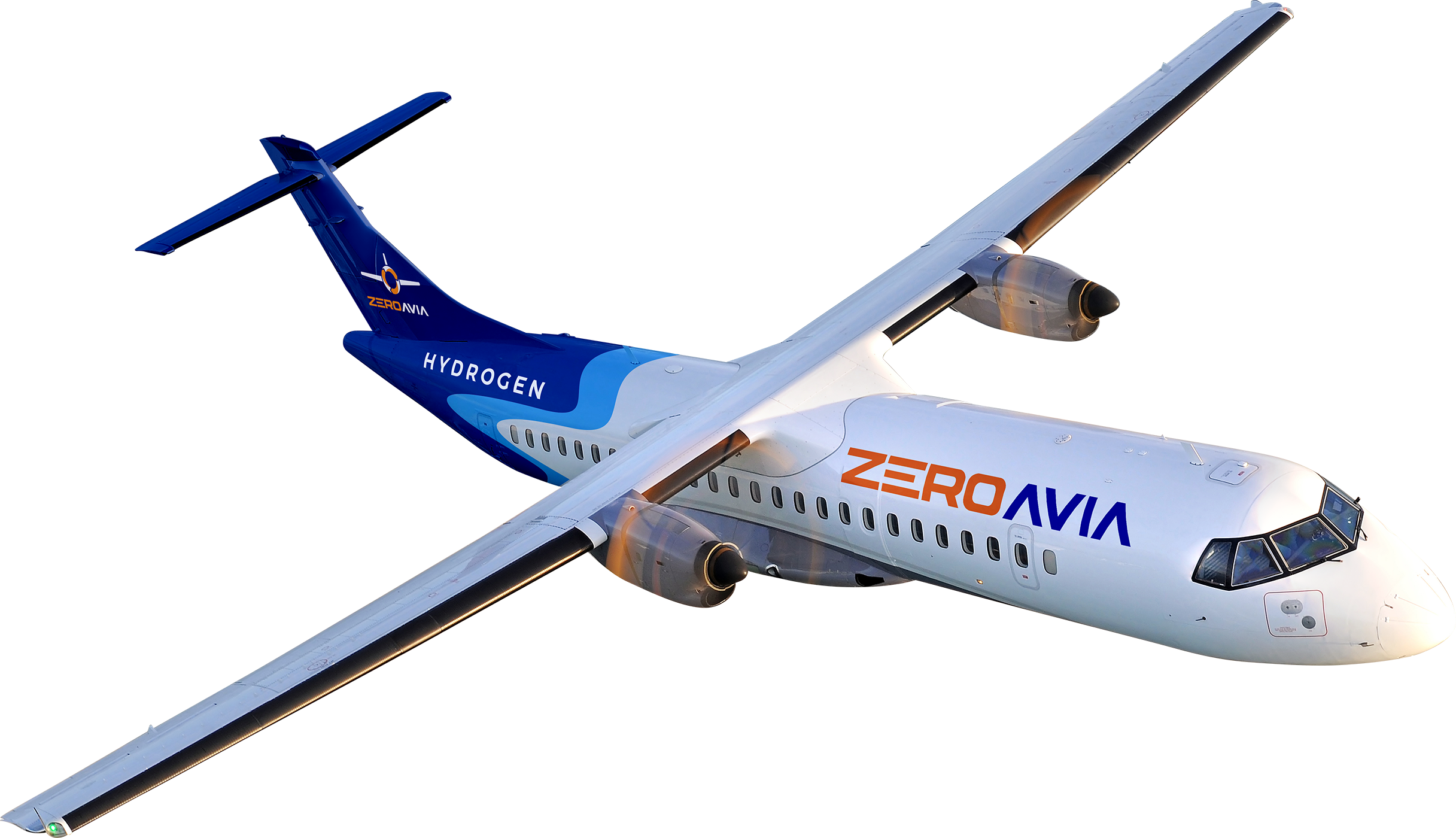

    Typical Airframes for ZA2000

    DHC Dash 8 Series

    DHC Dash 8 Series

    ATR 42/72

    ATR 42/72

    Comparison

    Comparison

    ZA2000

    Large turboprop engine

    Propulsion system type

    Fuel Cell and Electric Motor

    Internal combustion

    Shaft horsepower, kW

    2-5 MW

    2-4 MW

    Overall system efficiency

    45-60%1

    PW127 is >20% above 40% PP, otherwise <30%2

    Maintenance overhaul interval

    TBC

    TBC

    Fuel consumption hour/kg/eng

    60-70

    320-350

    Direct CO2 emissions per hour 3

    Nil

    1000-1100 kg

    NOx and other emissions per ho3

    Nil

    PW127F @ MCR, 2.2gCO/kg, 0gUHC/kg, 15.6gNOx/kg4

    Contrails 3

    60-80% reduction

    No mitigation

    1 ZeroAvia internal modelling for ZA2000

    2 ZeroAvia internal estimation for P127

    3 McKinsey & Company. (2020). Hydrogen-powered aviation. A fact-based study of hydrogen technology, economics, and climate impact by 2050.

    4 PWC Exhaust Emissions Data – March 1997



    Download Brochure Contact Us
